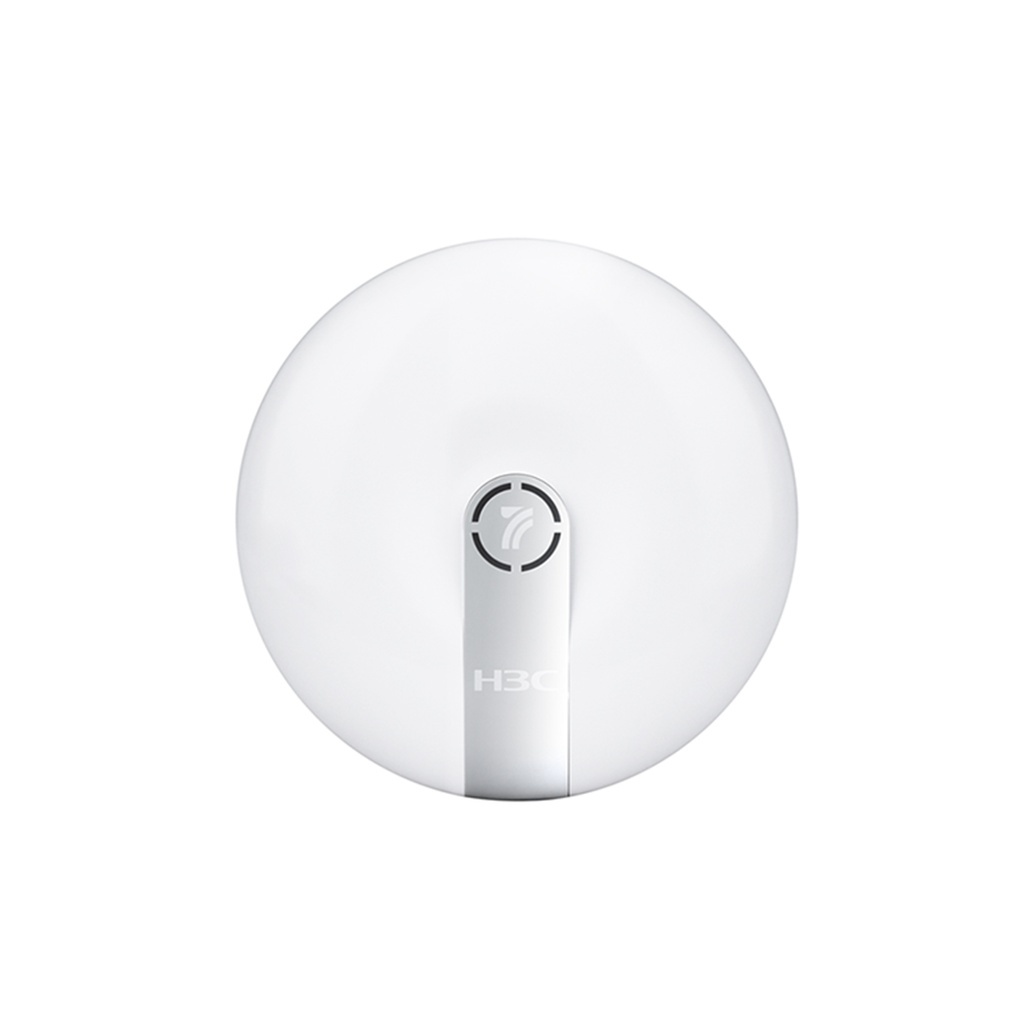

Беспроводная точка доступа (роутер) H3C EWP-WA7130
Беспроводная точка доступа (роутер) , H3C, EWP-WA7130, Wi-Fi 7, 802.11a/b/g/n/ac/ax/be, BE 9335, 1 порт 10/100/1000/2.5G RJ45, 1 Management console port (RJ-45), 768 клиентов, PoE+802.3at Беспроводная точка доступа (роутер) , H3C, EWP-WA7130, Wi-Fi 7, 802.11a/b/g/n/ac/ax/be, BE 9335, 1 порт 10/100/1000/2.5G RJ45, 1× Management console port (RJ-45), 768 клиентов, PoE+802.3at Name WA7130 Weight 0.80kg Dimensions (W × D × H) 240 mm × 240 mm × 45.2 mm Interface 1 x 100/1000M/2.5G Ethernet, RJ-45 Console port 1 × Management console port (RJ-45) PoE input 1 x 100/1000M/2.5G, 802.3at Local power supply 54V DC Antenna Type Built-in omni-directional antenna Antenna Gain 6GHz peak gain: 5.3dBi 5GHz peak gain: 5.7dBi 2.4GHz peak gain: 3.2dBi Note: The equivalent antenna gain is 3.7dBi in 6GHz, 4.4dBi in 5GHz and 2.0dBi in 2.4GHz Frequencybands 2.400to2.4835GHzISM 5.150to5.250GHzU-NII-1 5.250to5.350GHzU-NII-2A 5.470to5.725GHzU-NII-2C 5.725to5.850GHzU-NII-3/ISM 5.925to6.425GHzU-NII-5 6.425to6.525GHzU-NII-6 6.525to6.875GHzU-NII-7 6.875to7.125GHzU-NII-8 Note: The available bands and channels are dependent on the configured regulatory domain (country) Modulation technology OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps Modulation mode 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM Maximum transmit power 6G: 26dBm 5G: 26dBm 2.4G: 26dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations Adjustable power granularity 1 dBm Reset/restoration to factory default support Kensington Lock support Installation wall mounting/ceiling mounting LED Alternating flashing mode, yellow/green/blue for different working states Temperature Operating temperature: -10°C to +50°C Storage temperature: -40°C to +70°C Humidity Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) Protection class IP41 Overall power consumption Power source 6GHz MIMO 5GHz MIMO 2.4GHz MIMO Link speed PSE power consumption 802.3at 2*2 2*2 2*2 2.5G N 21.5W 802.3af - - - - - - DC 2*2 2*2 2*2 2.5G N 21.5W Local power supply: ≤21.5W PoE powered: ≤21.5W (IEEE 802.3af) PoE+ powered: Not supported (IEEE 802.3at) MTBF（25°C）（hrs） 1040998 Safety Standards IEC/EN 62368-1 GB 4943.1 EMC Standards EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 60601-1-2 EN 55032 EN 55035 CISPR 32 CISPR 35 AS/NZS CISPR32 ICES-003 Issue 7 GB/T 9254.1 GB/T 9254.2 GB 17625.1 GB 17625.2 IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 IEC/EN 61000-4-8 IEC/EN 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 Radio Standards ETSI EN 300 328 ETSI EN 301 893, FCC Part 15E, ETSI EN 300 440 ETSI EN 303 687 RoHS Standards DIRECTIVE 2011/65/EU (EU) 2015/863 Health Standards EN 50385:2017 EN IEC 62311:2020 MTBF (25 °C) 2635665 hours Бренд: H3C Гарантия: 3 года
